ARC | SKU: 48918691414363

ARC TCB Square - All Thicknesses

VAT and Shipping calculated at checkout.

Trusted UK Supplier
See our reviews!

Contact

Have any questions or need assistance with this product?

Phone: 020 3004 5451

Email: sales@nationalinsulationsupplies.com

Delivery & Shipping

Standard: 5-7 Working Day Delivery

Express: Same/Next Day Delivery - subject to availability, please call: 020 3004 5451

For further information, please see our Delivery & Shipping Policy here.

Returns

This product is a non-returnable product, please see our Return and Refund Policy for further details.

Product Datasheets

Product Datasheet:

ARC TCB Square - Product Datasheet

Things you should know about this product!

This product is priced on application, please get in touch to request a quotation
This product is available in the following thicknesses: 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm, 125mm, 130mm, 135mm, 140mm, 145mm, 150mm, 155mm, 160mm, 165mm

Description

ARC TCB Square provides up to 60 minutes of fire integrity and is designed for quick and easy installation, offering a robust solution for various construction projects. ARC TCB Square is suitable for use in terraced and semi-detached houses, apartments, and major developments. This product meets the cavity barrier requirements outlined in Approved Document B and is available in a standard size that accommodates service penetration sizes up to 150mm in diameter. The design is innovative and protected, with third-party certification from IFC, ensuring reliability and compliance with industry standards.

Specifications

Length

380mm or 500mm
Width

Varies depending on thickness
Material type

Non-combustible Rockfibre Mineral Wool
Thermal conductivity

0.037 W/mK
Fire rating

Euroclass A1

Key Features

Provides up to 60 minutes of fire integrity
Robust solution that is quick and easy to install
Suitable for use in terraced, semi-detached homes, apartments, and large-scale projects
Complies with cavity barrier requirements in Approved Document B
Standard size accommodates service penetrations up to 150mm in diameter
Features an innovative and protected design
Certified by a third party

Where to use

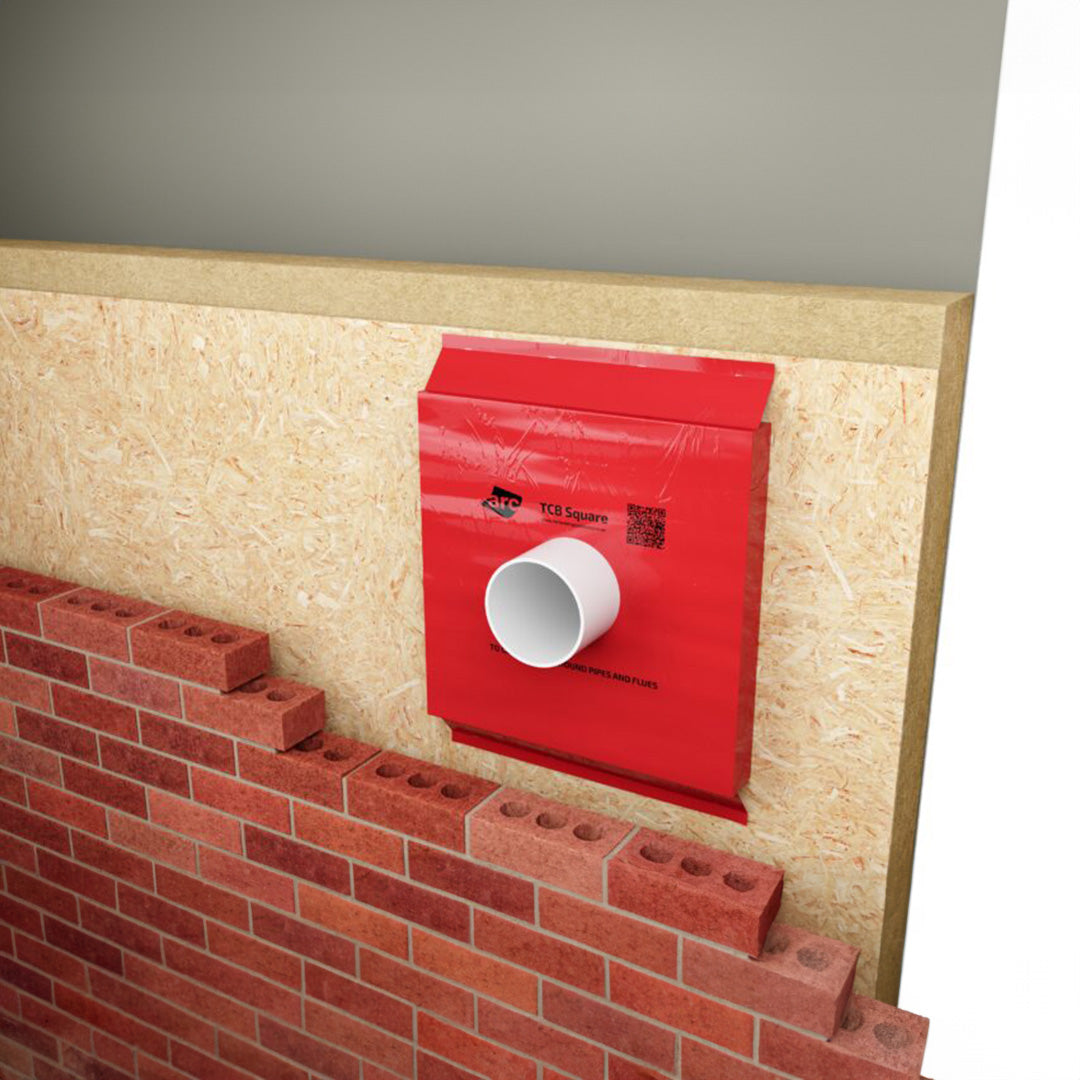

Penetrations through the external walls of low-rise houses: The ARC TCB Square cavity barrier is designed for use around penetrations through the external walls of low-rise houses. It provides fire resistance by helping to prevent the spread of flames and smoke through cavities. Additionally, it helps maintain thermal integrity by reducing heat loss around penetrations. The barrier is shaped to fit around these penetrations, facilitating installation. It is compliant with building regulations related to fire safety and thermal performance and also offers moisture resistance to protect against water ingress. The ARC TCB Square is suitable for various wall constructions in low-rise housing.

Frequently asked questions

What is ARC TCB Square?

ARC TCB Square is a thermal cavity barrier designed to prevent the spread of fire and smoke in cavity walls. It also helps reduce thermal bridging in square-shaped cavities, ensuring improved energy efficiency and fire safety

How do you install ARC TCB Square?

ARC TCB Square is installed within the cavity of external walls, typically at junctions where a square-shaped cavity occurs. It should be fitted tightly between the inner and outer leaves of the wall to ensure an effective barrier against fire and thermal bridging.

Where can ARC TCB Square be used?

ARC TCB Square is suitable for use in masonry cavity walls, particularly in locations where square-shaped cavities are present. It is commonly used in residential and commercial buildings to enhance fire safety and thermal performance.

How does ARC TCB Square improve building performance?

By reducing thermal bridging, ARC TCB Square enhances the overall thermal efficiency of the building, leading to lower energy consumption. It also provides crucial fire protection, helping to contain and slow down the spread of fire in cavity walls.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You are currently viewing the first product on this grid:

A table comparing the facets of 4 products
Facet	ARC TCB Square - All Thicknesses View details	ARC TCB - Timber to Brickwork - All Thicknesses View details	ARC TCB - Timber to Timber - All Thicknesses View details	ARC Party Wall TCB - All Thicknesses View details
Price
Price
Length
Length	380mm or 500mm	n/a	n/a	n/a
Width
Width	Varies depending on thickness	Varies depending on thickness	Varies depending on thickness	Varies depending on thickness
Edge
Edge	n/a	n/a	n/a	n/a
Fire rating
Fire rating	Euroclass A1	Euroclass A1	Euroclass A1	Euroclass A1
Compressive strength
Compressive strength	n/a	n/a	n/a	n/a
Thermal conductivity
Thermal conductivity	0.037 W/mK	0.037 W/mK	0.037 W/mK	0.037 W/mK
Material type
Material type	Non-combustible Rockfibre Mineral Wool	Non-combustible rockfibre mineral wool	Non-combustible rockfibre mineral wool	Non-combustible rockfibre mineral wool

The ARC TCB Square: Innovative By Design

Designed to restrict the spread of smoke and flames within the cavity of timber frame walls, as well as minimising noise pollution. Offers up to 60 minutes fire integrity, vertical and horizontal options and meets the requirements on Robust Detail Part E and Approved Document B.
